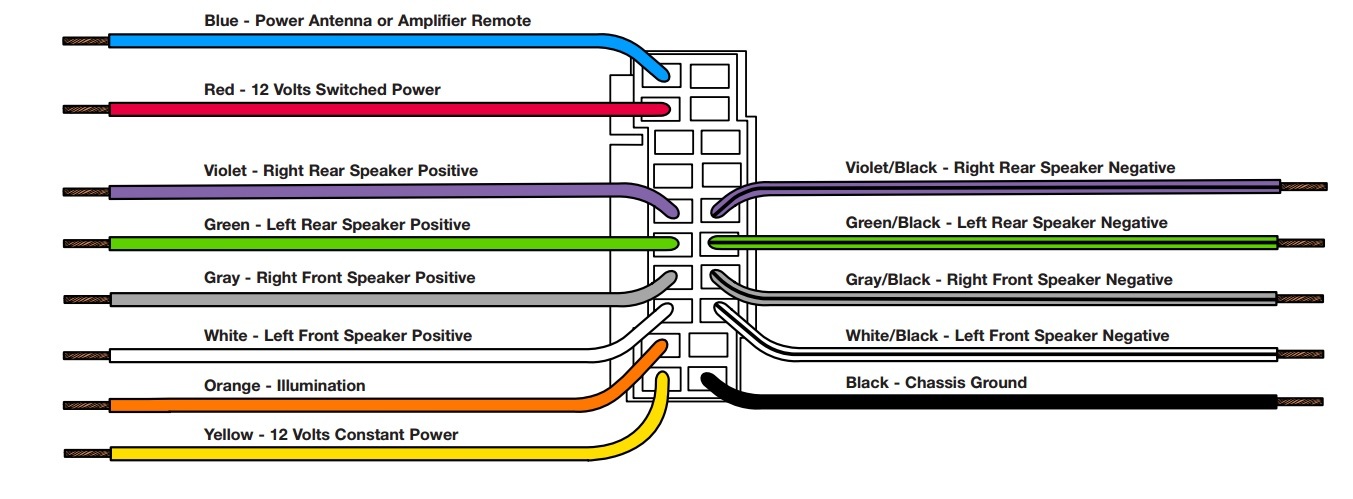

CD Player Color Codes

undefined

Speaker Connections

Due to many different wiring harnesses with different color codes we
recommend you use a 9v battery for testing.

Simply take the same color wires (one will have a black line and one will be solid), and touch them to the positive and negative to the 9v battery. By doing this, the speaker will make a slight popping sound.

Follow the color code instructions from the CD players manual to
determine speaker wires.

If you are still experiencing troubles please feel free to fill out a support ticket so a technician can further assist you.
